High-Performance Sterilization for Compact Spaces
The Vertisa VertiSteam 250L Steam Sterilizer is designed to the highest standards for sterilizing surgical instruments, textiles, rubber, and heat-resistant plastic materials. Combining reliability, ease of use, and efficiency, this model features a chamber made of AISI 316L grade stainless steel, providing a durable and corrosion-resistant structure. Its advanced PLC control system and 7-inch color touchscreen enable precise management and monitoring of all sterilization cycles. The device fully complies with essential European standards, including the Medical Device Directive (93/42/EEC), the Pressure Equipment Directive (2014/68/EU), and the EN285 standard.
Application Areas
- Dental Clinics and Oral Health Centers
- Operating Rooms of Small and Medium-Sized Hospitals
- Veterinary Clinics and Animal Hospitals
- Private Medical Centers and Outpatient Clinics
- Biotechnology and Research Laboratories
The Vertisa VertiSteam 250L Steam Sterilizer is an ideal solution that combines a compact design with high performance, making it perfectly suited for small and medium-sized clinics, dental practices, and specific hospital departments such as ophthalmology and ENT. With a capacity of 3 STU, it offers sufficient space for the safe sterilization of daily surgical instrument sets, packaged textiles, and glassware. Its robust chamber, manufactured from AISI 316L grade stainless steel, ensures long-lasting durability and exceptional resistance to corrosion. The advanced PLC control system and user-friendly 7-inch touchscreen make it easy to precisely manage and record all sterilization cycles. Full compliance with EN285 as well as all essential Medical Device and Pressure Equipment Directives makes the VertiSteam 250L a reliable and standards-compliant investment for your facility.
Model: VertiSteam 250L
Chamber Volume: 250 Liters
STU Capacity: 3 STU
Application Areas: Surgical Instruments, Textiles, Rubber Materials, Liquids, Plastic Products

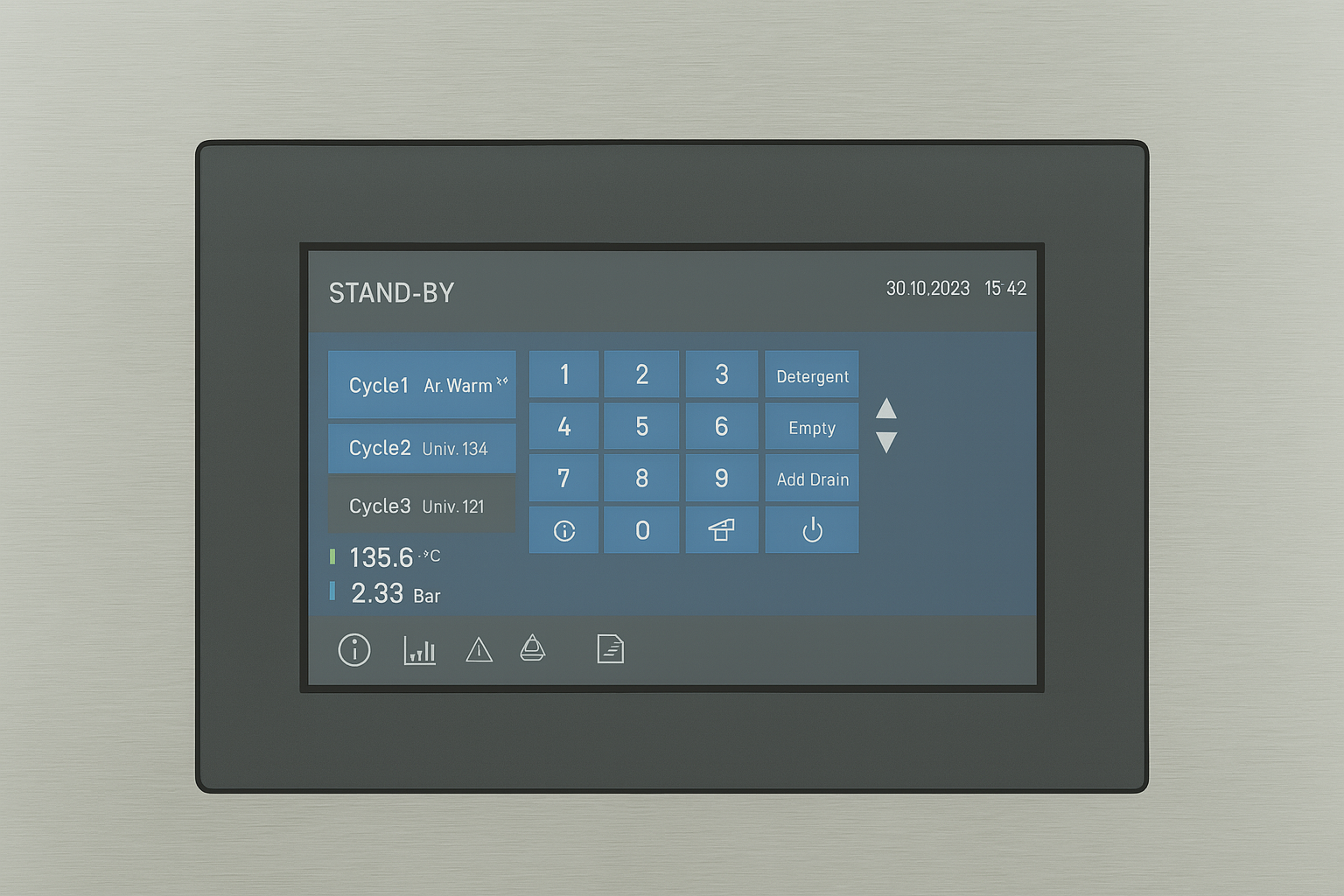

Control System: Fully automatic control via industrial PLC, 7″ color touchscreen interface
Sterilization Temperature: 105°C to 136°C
Material:
Chamber (Sterilization Chamber): AISI 316L Stainless Steel
Jacket and Door: AISI 304 or AISI 316L Stainless Steel
Outer Panels and Frame: AISI 304 Stainless Steel
Piping System: AISI 304 or AISI 316L Stainless Steel
Door System: Single or double door option, vertical sliding door with safety locking mechanism
Steam Source: Built-in electric steam generator or connection to an external central steam supply
Standard Programs: 3 standard cycles (Textile, Surgical Instruments, Rubber)
Test Programs: 2 test cycles (Bowie & Dick, Vacuum Leak Test)
Data Management: Built-in thermal printer, Ethernet and USB ports
Safety Features:
Safety lock preventing cycle start unless the door is fully closed
Mechanically locked door throughout the cycle
Audible and visual alarm system
Compliance and Certifications: CE, ISO 13485, EN285, 93/42/EEC, 2014/68/EU
