Reliable Performance for High-Volume Sterilization
The Vertisa VertiSteam 555L Steam Sterilizer is designed to the highest standards for the sterilization of surgical instruments, textile products, rubber, and heat-resistant plastic materials. Combining reliability, ease of use, and efficiency, this model features a chamber made of AISI 316L grade stainless steel, ensuring long service life and excellent corrosion resistance. Its advanced PLC control system and 7-inch color touchscreen provide precise management and monitoring of all sterilization cycles. The device is fully compliant with key European regulations, including the Medical Device Directive (93/42/EEC), the Pressure Equipment Directive (2014/68/EU), and the EN285 standard.
Application Areas
- Central Sterile Supply Departments of Large and University Hospitals
- Hospitals Performing High-Volume Surgical Operations
- Medical Device Manufacturers (Pre-Packaging and Mass Production)
- Pharmaceutical and Biotechnology Industry
Developed to meet the high standards of large hospitals and high-demand Central Sterile Supply Departments (CSSDs), the Vertisa VertiSteam 555L is designed for uninterrupted operations with its impressive 8 STU capacity. This autoclave ensures the efficient sterilization of a large volume of materials, including large orthopedic sets. Built on a robust frame, the unit can operate with its integrated electric steam generator or be easily connected to the facility’s central steam system, making it a flexible solution for any infrastructure. Its advanced PLC control system and 7-inch touchscreen allow for easy management, monitoring, and reporting of even the most complex sterilization cycles. Full compliance with strict international safety and performance standards such as EN285 and the Pressure Equipment Directive 2014/68/EU ensures exceptional reliability, even for the most critical applications.
Model: VertiSteam 555L
Chamber Volume: ~555 Liters (based on 550 L model)
STU Capacity: 8 STU
Application Areas: Surgical Instruments, Textiles, Rubber Materials, Liquids, Plastic Products

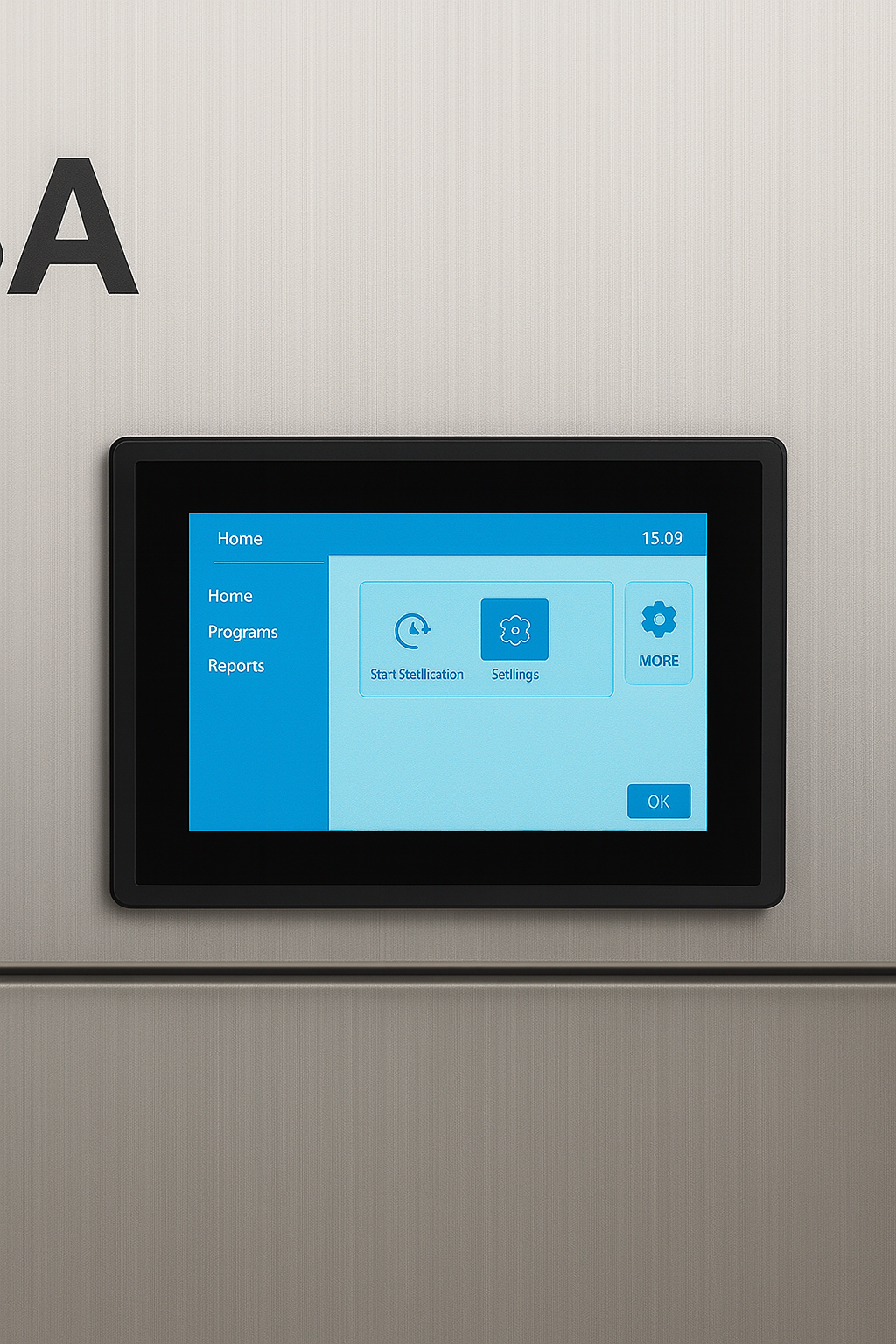

Control System: Fully automatic control via industrial PLC, 7″ color touchscreen interface
Sterilization Temperature: 105°C – 136°C
Material:
Chamber (Sterilization Chamber): AISI 316L Stainless Steel
Jacket and Door: AISI 304 or AISI 316L Stainless Steel
Outer Panels and Frame: AISI 304 Stainless Steel
Piping System: AISI 304 or AISI 316L Stainless Steel
Door System: Single or double door option, vertical sliding door with safety locking mechanism
Steam Source: Built-in electric steam generator or connection to an external central steam system
Standard Programs: 3 standard cycles (Textile, Surgical Instruments, Rubber)
Test Programs: 2 test cycles (Bowie & Dick, Vacuum Leak Test)
Data Management: Built-in thermal printer, Ethernet and USB ports
Safety Features:
Safety lock preventing program start unless the door is fully closed
Mechanically locked door throughout the cycle
Audible and visual alarm system
Compliance and Certifications: CE, ISO 13485, EN285, 93/42/EEC, 2014/68/EU
